09230053

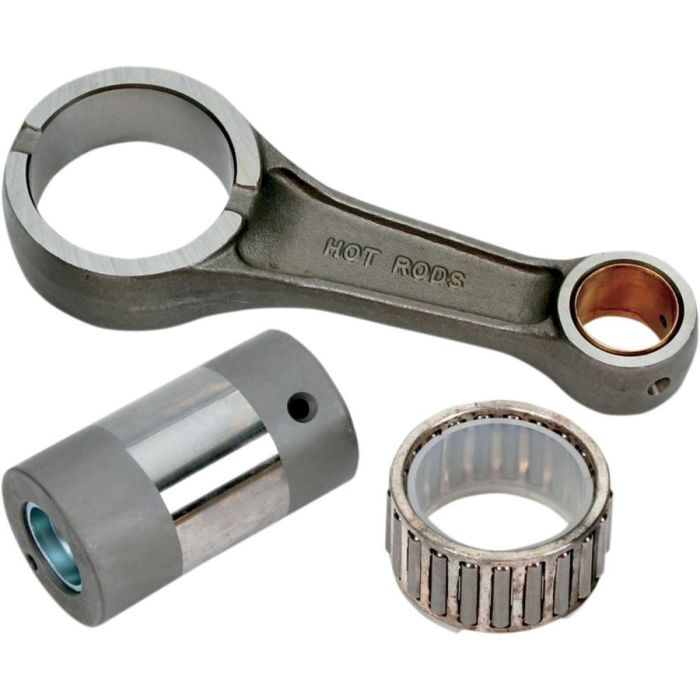

Arctic Cat DVX400 04-08 kawasaki KFX400 03-06 Suzuki LTZ400 03-09 12-13 HOT RODS Connecting Rod Kit

In stock

Arctic Cat DVX400 04-08 kawasaki KFX400 03-06 Suzuki LTZ40003-09 12-13 HOTRODS Connecting Rod Kit Hot Rods crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62 Rc Hot Rods works directly with their bearing factory's engineering department to bring you the latest in caged needle roller bearing designs for high rpm Uniquely designed big end uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion Hot Rods are double forged to improve grain flow and maintain dimensional consistency Shot peened to eliminate surface stress risers and to smoothly blend the rod forging's radiuses together, which unlike hand-ground and polished rods produces more consistent dimensioning and surface finish for superior strength under heavy loads By shot peening the connecting rod's surface, fatigue durability is improved two times over a forged rod and over eight times when compared to polished rods Double honing produces an ultra-round (50 millionths) bearing surface, producing a reliable high-rpm connecting rod Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing Also feature silver-coated bronze phosphor thrust washer Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers
More Information
Brand HOT RODS
Write Your Own Review
You're reviewing:Arctic Cat DVX400 04-08 kawasaki KFX400 03-06 Suzuki LTZ400 03-09 12-13 HOT RODS Connecting Rod Kit
