ATV QUAD SPOT SPRAYER

SprayRider™ is designed and engineered specifically for the ATV, and represents the next generation in ATV Spot Sprayers.
The new generation 50 litre tank is designed to fit even more ATV’s than ever before, while unique safety features such as a low centre of gravity, and internal tank baffle dramatically reduce the destabilising effect of liquid surge while the ATV is in motion.
Patented valves eliminate the underbody balance hose but preserve the unique C-Dax feature of total evacuation of tank contents on all terrain.

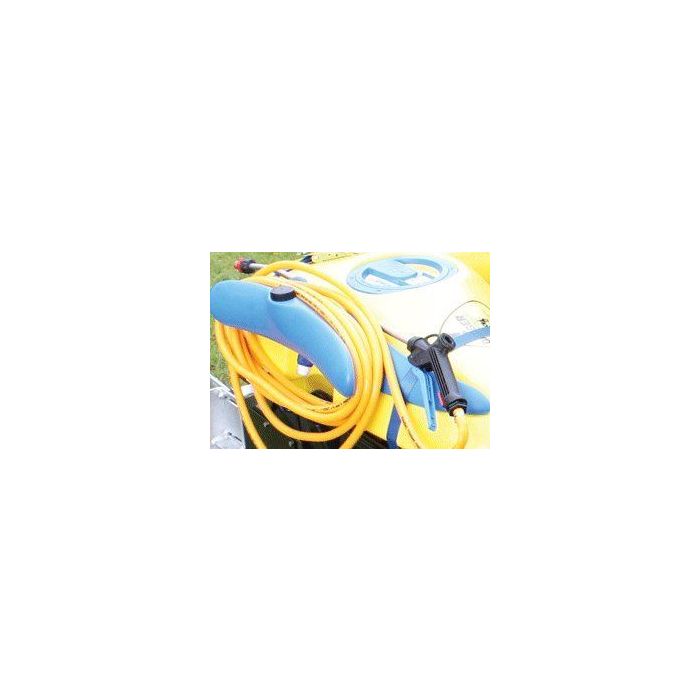

A two litre on-board fresh water tank provides a reservoir to rinse hands and doubles as a hose storage feature, while a robust hand lance with adjustable nozzle caters for a range of different jobs.
The convenient handlebar mounted on/off switch allows for ease of use and increases operator safety.
Front or rear mounting alternatives (depending on bike) ensure that more control can be exercised over the critical consideration of weight distribution.

Features

• 50 Litre tank capacity
• Front or rear mounting (depending on bike)
• New Generation designed to fit more ATVs than ever before
• The safest ATV Sprayer ever—lowest centre of gravity available with internal baffle to prevent sudden liquid movement when in motion
• Complete tank evacuation on any angle with our 'Smart' suction valves
• Handy 2 litre on board fresh water reservoir
• Patented valves eliminate the underbody balance hose
• Covered pump for maximum protection
• Three filter fluid system
• 12-volt pump, 40–60psi (2.75–4 bar) rating

Specifications

• 50 Litre (SR50) front or rear mounting (depending on bike)
• Weight:
  12.5kg empty; 62.5kg full
• 580psi, 8mm delivery hose
• 12-volt DC pump connects to ATV battery
• 7.6Lpm (60psi) pump
• Comes with:
  Stainless steel spray lance
  10m of delivery hose and rugged spray lance
  Wiring loom with fuse and handlebar mounted on/off switch
  Ratchet tie-down strap
  2 Litre fresh water tank

Options

• SprayRider™ 80
• Dual Tank Kit
