810.65028

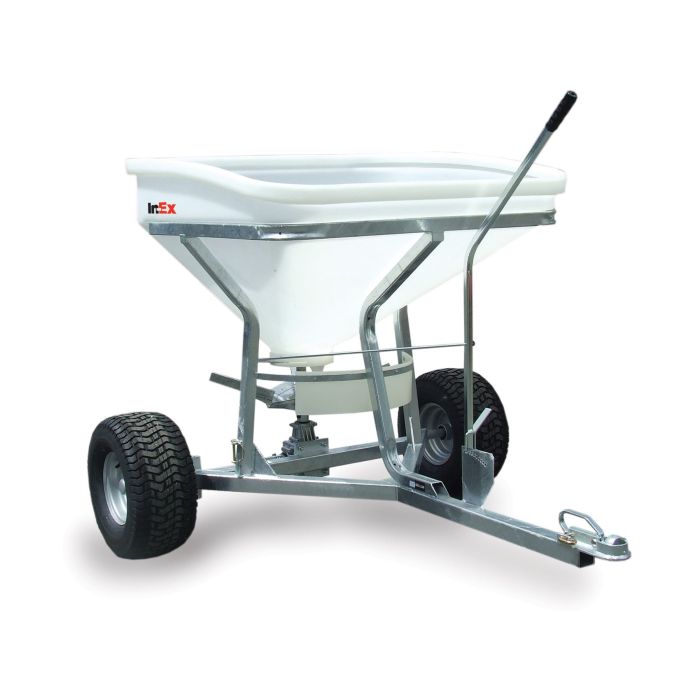

C-DAX InEx ATV Quad Tow Behind Spreader - Broadcaster Fertiliser Seed
Out of stock
£2,100.00
£1,750.00
The IN-EX Spreader 300 is a ground-driven spreader designed for application of pelleted fertilisers. It can also
be used for application of other products such as grass seed and magnesium oxide. The uniquely designed
300-litre translucent non-corrosive polyethylene hopper is specially profiled for good product flow and ease of
filling. The convenient flexible polypropylene cover is easy to remove, install and store if not required. A highquality stainless steel agitator and shutter ensures even flow of product to the spinner. A unique spinner
design ensures wide, even spread of product over 180 degrees (Urea). The heavy-duty galvanised frame is
fitted with chunky turf tyres as standard. The drive train uses high quality steel and a double sealed selfaligning bearing and heavy-duty gearbox for maximum durability. The drive can be disconnected using a
convenient pin clutch. The dual control levers allow instant setting of product feed rate and product control.
Specifications : (Specifications subject to change without notice)
- Dry Weight 75 Kg
- Dimensions W1430mm, H1200mm, L1700mm
- W1450mm (Wide wheel models)
- Capacity 300 litre (250Kg Urea)
- Drive Ground driven (single wheel)
- Wheels 18x950x8 Chunky turf tyres
- Tyre Pressure 12 PSI
- Clutch Removable Pin
- Control Adjustable stainless steel slide with index handle
- Agitator Mechanical arm, stainless steel
- Spinner Galvanised steel with three-position adjustable vanes
- Hopper Non-corrosive polyethylene, ergonomically designed for ease of filling and inspection
- Hopper Cover Lightweight polypropylene fabric
- Frame Galvanised steel
- Gearbox Heavy duty with double sealed bearings
- Gearbox oil 400ml SAE30
- Axle Bearings Sealed ball races
- Clutch bearing Heavy-duty phosphor-bronze bush
- Axle grease General Purpose
- Application Rate 140Kg per hectare @ 10 kph (nominal, Urea)
- Spread width 18M (nominal, Urea @ 15 Kph)
- Towing speed 15 Kph (Maximum recommended)
| Barcode | 5056226964881 |
|---|---|
| Brand | C-DAX |
