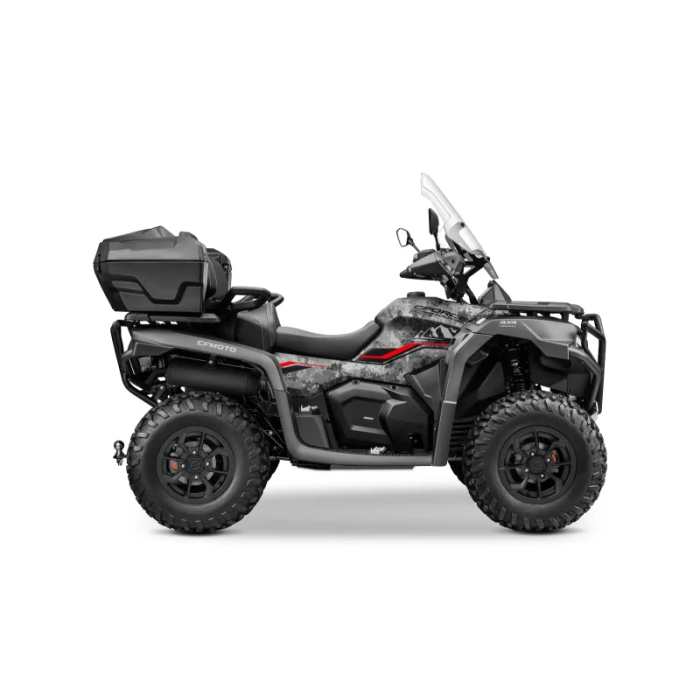

2024 CFORCE 625 TOURING OVERLAND
Includes 2-year parts and labour warranty
Built with the CFORCE 1000 OVERLAND in mind, the CFORCE 625 TOURING OVERLAND is a factory, adventure-ready platform that will take you and your best wherever the trail leads. The only thing left is get outdoors and start your adventure.
Lead the pack
Performance
Higher output across the power band and smooth power delivery throughout the rpm range, the engine is designed for optimal performance, with technical upgrades like new cylinder head, camshaft, forged pistons, DLC-coated piston rings. The air intake and exhaust have also been optimized for maximum efficiency. Two Driving Modes. Variable Assist EPS. Electronic Throttle Control.
Unique Style
Granite Ridge and Midnight Camo with OVERLAND decal. Same as the CFORCE 1000 OVERLAND.
Full Protection
Bumpers which protect LED lights in the front and back come as standard. Full-length skid plate is made of aluminum as standard. Full protection of bottom and suspension arms.
Large Storage
90 liters cargo box can hold 2 open-face helmets and 1 full-face helmet. Made of heavy duty plastic. The cargo box also comes with buckles that lock with a key.
Clear Wind Shield
Wind shield assembly is also standard. Its height gives the rider great safety from wind, rain, and off-road elements.
SPECIFICATION
- Engine Type: Single cylinder, liquid cooled, 4-stroke, SOHC, 4-valve
- Displacement: 580cc
- Transmission: CVT
- Bore × Stroke: 91×89.2 mm
- Maximum Power: 45 hp
- Maximum Torque: 51 Nm
- Compression Ratio: 10.68:1
- Fuel Supply: EFI
- Ignition: ECU
- Drive: Switchable 2WD/4WD/4WD Lock
- Brake: Four-wheel brake (CBS) + rear wheel parking
- Suspension: Front/Rear: Double A-arm, independent suspension
- Shock Absorber: Front/Rear: Coil spring + oil damping, preload adjustable
- Rim: Front：12×6.0, cast aluminium Rear：12×7.5, cast aluminium
- Tyres: Front：AT 25×8.0-12 Rear： AT 25×10.00-12
- Length x Width x Height: 2235×1180×1390 mm
- Wheelbase: 1480 mm
- Seat Height: 530 mm
- Minimum Ground Clearance: 270 mm
- Minimum Turning Diameter: 7400 mm
- Curb Weight: 415 kg
- Towing Capacity: 680kg (offroad capacity is up to 875kg at 20km/h on smooth level terrain)
- Fuel Capacity: 18 L
