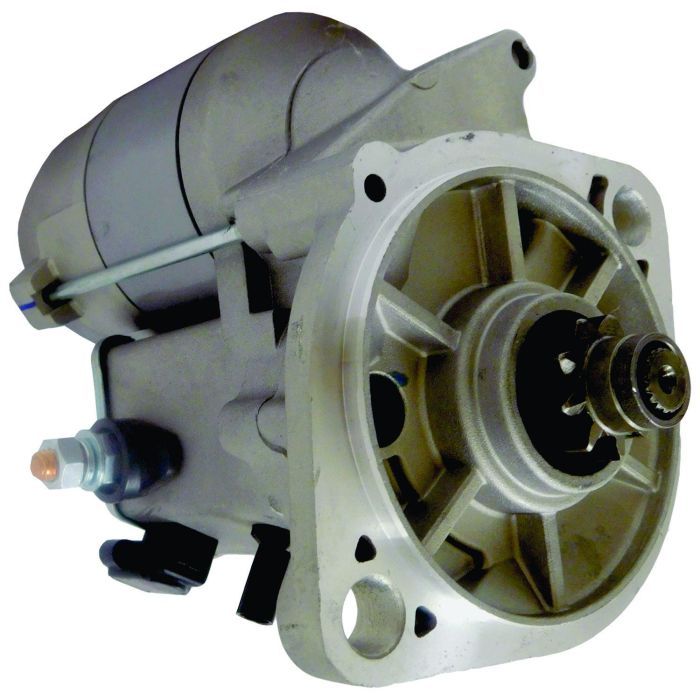

Cub Cadet John Deere 02-12 UTV Yanmar Starter Motor
Starter
Replace OEM(s): Denso, Yanmar 119626-77020
Used On: Yanmar Garden Tractor Applications
Design: OSGR
Gear OD: 1.15in / 29.2mm
Gear Teeth Count: 9 Teeth
Mtg Config Code: B
Mtg Ear 1 Hole: 13mm Unthreaded
Mtg Ear 2 Hole: 13mm Unthreaded
Mtg Holes Counts: 2 Holes
Power KW: 1.2KW / 1.61HP
Rotation: CW
Starter Type: OSGR
Voltage: 12 Volt
Weight: 8.38 lbs / 3.81 kg
Used On:
Cub Cadet Utility Vehicle SC2400 Yanmar 0.9L Dsl. 2002-2012
John Deere Tractor - Lawn X495 Yanmar 24HP Dsl. 2002-2011
John Deere Tractor - Lawn X595 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X740 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X744 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X748 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X749 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X750 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X754 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X758 Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Lawn X950R Yanmar 24HP Dsl. 2002-2012
John Deere Tractor - Utility 1023E Yanmar 3TNM72 Dsl. 2002-2012
John Deere Tractor - Utility 1025R Yanmar 3TNV76 Dsl. 2002-2012
John Deere Tractor - Utility 1026R Yanmar 3TNV76 Dsl. 2002-2012
John Deere Tractor - Utility 2025R Yanmar 3TNV76 Dsl. 2002-2012
John Deere Tractor - Utility 2305 Yanmar 24.1 HP Dsl. 2002-2012
John Deere Tractor - Utility 2320 UT Yanmar 24.1 HP Dsl. 2002-2012
| Barcode | 609843690814 |
|---|---|
| Brand | MOTORSPORT ELECTRICS |
-
