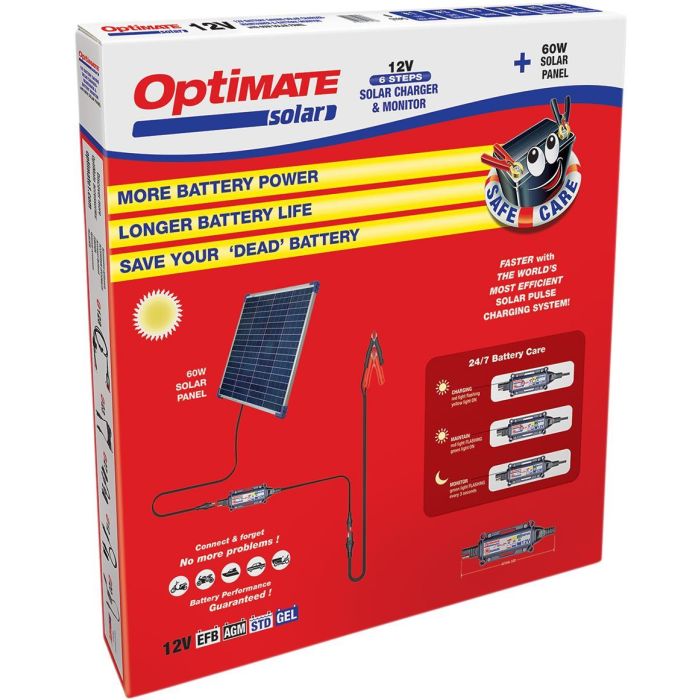

Optimate Solar Panel Charger Maintainer 60w Shed Caravan Van Garage OP60
In stock
£262.46
£218.72
CHARGER SOLAR 60W
- OptiMATE Solar 12V charge amp; monitor system, the SMART 24-7 battery care solution powered by the sun.
- The smart OptiMate Solar system includes a 60 Watt weatherproof solar panel and a smart OptiMate Solar combination charger-monitor controller, that charges amp; maintains a 12V battery during the day and monitors and displays the battery state of charge at night.
- The solar panel’s wide spectrum poly-crystalline technology generates power even in low light, which the OptiMate controller converts into high current pulses more effective for charging and maintenance of a 12V battery.
- At night the smart controller turns into a battery monitor, providing battery information every 3 seconds on the easy to read 3 LED panel.
- Saves flat batteries from as low as 1V with its unique pulse action.
- The fastest charge is delivered as ‘smart charge’ control selects pulse or continuous charge according to sunlight strength.
- Intelligent maintenance continues the next day if the battery retained charge overnight, otherwise, the program reverts to OPTIMIZE step.
- Battery condition is displayed every 3 seconds. Ready indication for STD and hi-performance AGM batteries. Draws less than 0.5mA during monitor mode.
- Automatically switches to CHARGE when solar power is sufficient.
- The OptiMate charger-monitor controller is separate from the solar panel and can be placed close to the vehicle or battery so that charge and maintenance progress can be easily followed.
- The solar panel must be mounted and angled to receive direct sunlight.
- The reach / distance between battery and panel is 315cm / 124''.
- To extend, use OptiMate Cable Extenders O-03, O-13 or O-23 and insert between the solar panel and the OptiMate charge-monitor controller.
- (EN)Outer dimension, including corner mount brackets : Width = 65.9 cm / 16 7/8” Height = 68.6 cm / 27 ” Depth = 3.3 cm / 1 1/4”
- Power 60 Watts (max.)
- 12V nominal, 22V maximum.
- For Outdoor.
- Weatherproof, aluminium frame with 4 x mounting brackets, output cable 200cm / 80'' with SAE connector.
- OptiMate Charge-Monitor controller:
- 5A from 60W panel (max. average current), 3-5A pulse current
- For Indoor / Outdoor (lowest temperature:
- 4°F /
- 20°C).
- Low Volt Start of 1V
- Ideal for STD, AGM amp; GEL 12V batteries from 2 – 240Ah.
- Input 15 – 22V
- Weatherproof charge controller case.
- Weatherproof battery lead, standard battery clip set amp; 60W solar panel
- No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected. 3-year limited replacement warranty.
AMPS | 5 A (7MAX) |
TYPE | Battery Charger |
UNITS | Each |
PRODUCT NAME | Solar panel |
VOLTS | 12 V |
POWER CONNECTION TYPE | Alligator Clamp| Eyelet Connector| SAE Plug |
Brand | TECMATE |
---|
