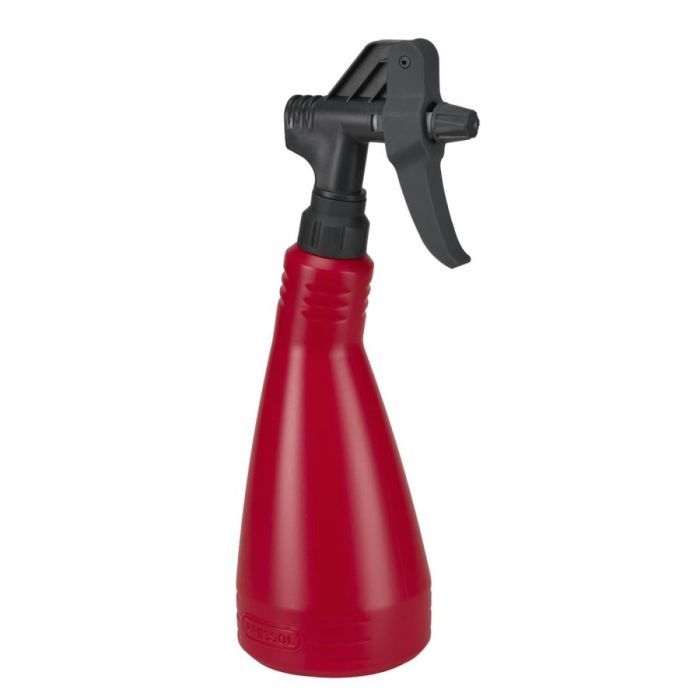

PRESSOL Industrial Fluid Sprayer 750ml

Industrial sprayer 2014.1-750 ml
PE-red-SPK double acting

Specification

• Atomizer head with double stroke and freely positionable
• Flexible hose allows almost complete emptying at a working angle of 0°-180°
  Special notes
• Recommended for us with thin liquid media, such as lubricants, break cleaners and cleaners from the industrial and automotive industry areas, as long as the Material of the sprayer is resistant to these media
• Use also in horizontal container position
• Thoroughly flush the system with clean water after use
• Stable
• List of tested media see stability list
  Technical data
• Volume of container (ml): 750
• Colour of container: red
• Colour sprayhead: black
• Spray volume per cycle (ml): 1,4
• Spray angle: 50°
• Reach at set spray angle of 50° (mm): 600
• Reach at full jet (mm): 4500
• Operating temperature area (°C): +5 / +30
• Height (mm): 313
• Base Ø (mm): 100
• Weight (kg): 0,17
  Material
• Container (in contact with liquid): HDPE (high density polyethylene)
• Pump (in contact with liquid): Special plastic
• Seal (in contact with liquid): FKM
• Suction hose (in contact with liquid): Special plastic
• Pressure spring and ball (in contact with liquid): INOX
• Adjusting nut (in contact with liquid): HDPE
