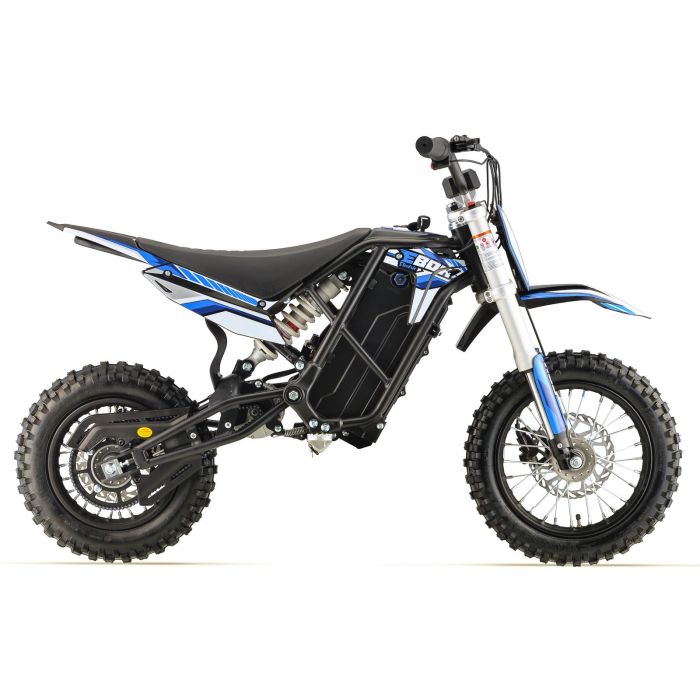

EBOX 1.6 is a 1.6 KW lithium battery / brushless motor combination that packs an astonishing punch. So-much-so, during development we had to add speed-controller adjustment because it was literally too savage. The benefit is that EBOX 1.6 can be controlled to perfection, dialled down for entry level riding and turned up when you are ready to pin it to clear that table.
EBOX 1.6 will easily pull wheelies off the throttle with a 90 kg adult rider and top-out (quickly) at around 28 mph (more than enough for track use).
Aimed at entry level riders from 6 years up, the EBOX 1.6 is fully compliant with CE and UKCA testing standards. This is a proper bike for serious riders. The perfect, near-silent stepping-stone for every kid with motocross dreams!
A solid hours riding is easily achieved at full power settings and that can be extended by changing the battery should you need more track time.
Key features: charge level indicators, lightweight disk brakes, upside down forks, mono shock, 16.6 AH lithium battery and power delivery control.
FRAME TYPE
Double Cradle
FRONT WHEEL SIZE
12"
REAR WHEEL SIZE
10"
FRONT BRAKE
Hydraulic Disc
FRONT DISC
180mm
REAR BRAKE
Hydraulic Disc
REAR DISC
180mm
FRONT TYRE
12" x 2.27"
REAR TYRE
10" x 3"
CHAIN
219H
GEARING
Front 10T, Rear 70T
MAX LOAD
85kg
SHOCK TYPE
Mono shock
FORK TYPE
USD
HANDLEBAR
Aloy
MOTOR VOLTAGE
48v
PEAK POWER
1.6KW (2.1hp)
MAX RPM
4100
BATTERY
48V 15.6Ah Lithium
CONTROLLER OUTPUT
42A
CHARGER
AC 110-240V, output: 54.6V, 2A
CHARGE TIME
7-8 hours
RANGE PER CHANGE
28-30 Km
TOP SPEED
48 Km/h
EXTERNAL ADJUSTABILITY
Top speed, Acceleration
FRAME CONSTRUCTION
High strength steel, powder coated, removable subframe, swing arm mounted motor, non linkage suspension
