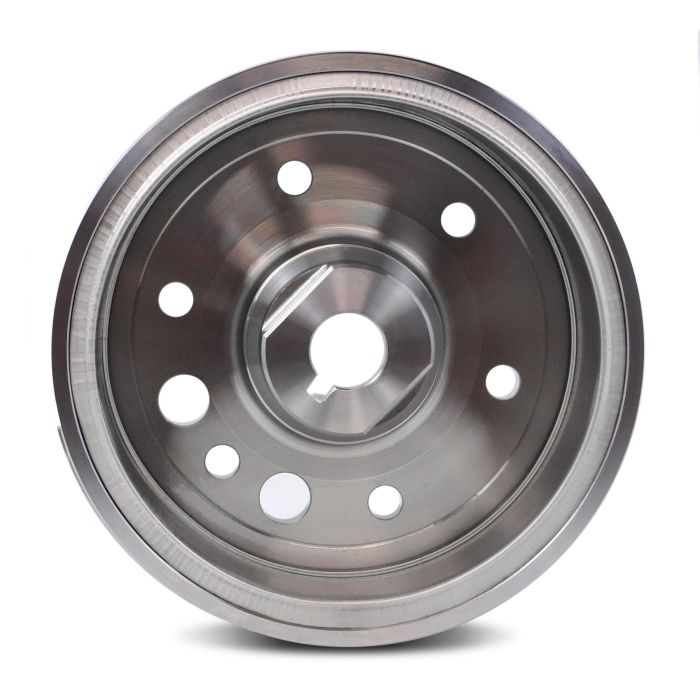

Suzuki LTA400 LTF400 Eiger Arctic Cat 375 400 HD Flywheel To Replace 32102-38F01

Magneto Flywheel Rotor

RMSTATOR is offering a new replacement flywheel for your Suzuki and Arctic Cat. This flywheel can be used as a direct replacement to the OEM.

• All products are tested
• One year limited warranty

What is improved about the RM11502 flywheel?

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.

Installation Instructions

Before attempting to start your kawasaki or suzuki adjusting the air gap is necessary.
Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010’’.

Cross Reference
