WARN101240

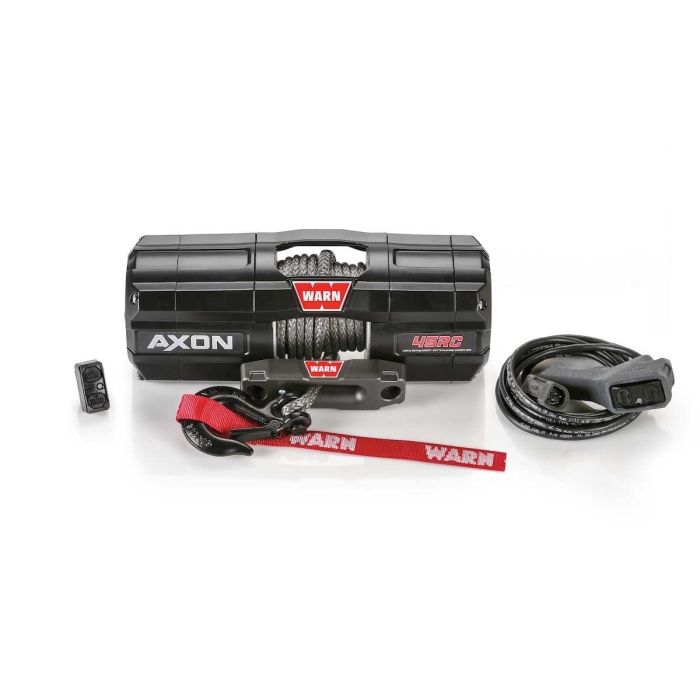

WARN Axon 45RC Synthetic Utv Winch

In stock


AXON 45RC POWERSPORT WINCH

Short drum design is optimized for mounting in the tight space required with some Side x Sides. 27’ of 1/4” Spydura synthetic rope, EPIC hawse fairlead, Rockerbar digital control switch, and digital corded remote

Please Note: This product requires a mounting plate to be properly mounted to your vehicle.

his AXON™ winch was specifically designed with the space constraints of a sport Side x Side. The winch’s
short drum configuration allows for a narrower overall width, but still has a big 4,500 lb. pulling capacity.
Other features include all-metal IP68 waterproof construction, revolutionary Motactor™ technology that
combines a motor and contactor into one unit, digital control that provides user feedback, and an all-new
clutch control dial based on WARN 4WD hublock know-how.

  • AXON 45RC includes 27’ of lightweight, easy-to-handle ¼” Spydura synthetic rope, an Epic hawse fairlead, and a black hook
  • Compact configuration specifically for the space restrains of a sport Side x Side
  • Powerful 4,500 lb. pulling capacity Revolutionary Motactor™ combines motor and contactor for easy
    installation, best performance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Digital control offers never-before seen levels of performance and user feedback including load and
    temperature info
  • Load-holding brake for great control
  • Smooth, reliable all-metal three-stage planetary gear train
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Rockerbar digital control switch and digital wired remote
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
More Information
Brand WARN
