SNOWPLOW6

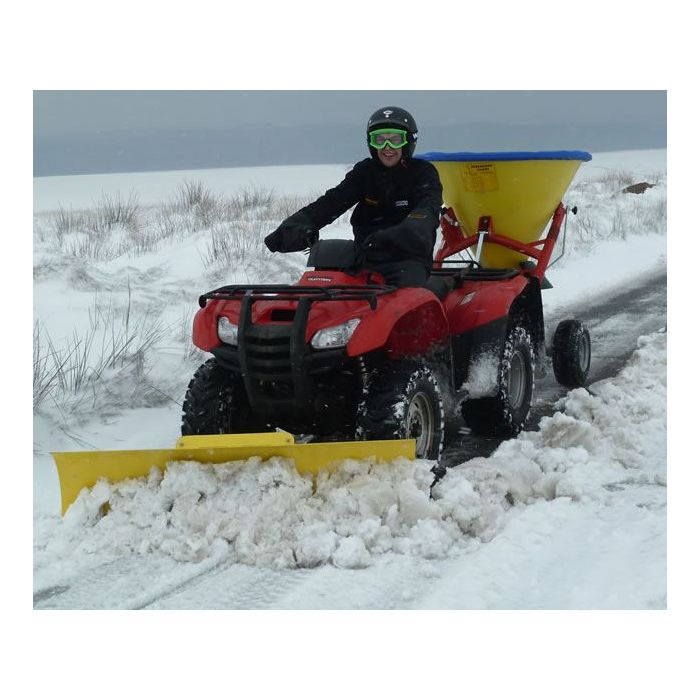

Yamaha Grizzly Kodiak 350 400 450 Snow Plough System 04+

In stock
Only 1 left
The SnowPro Plow System is designed from the ground up to have all the best features in one complete package. It's engineered to out perform and outlast the competition. The plow system is engineered as a Mid-Mount System that transfers the forces from plowing to your ATV's frame where it belongs. All plow components are shot blasted and powder coated tough for the best finish available.
Blade details:
Pushes snow straight ahead!
54" Blade with HD Spring Blade Break Away System
Heavy duty grade-8 steel wear bar
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Swivel Mount details:
Easy-pull lever for blade adjustments
5-position blade adjustability, up to 26° on either side
4-position blade pitch adjustability, in 5° increments
6" diameter zinc-plated steel angle bushing plate and HD pivot bushing
TGB Specific Plow Mounting Plate
Requires a Winch to lift up and down
Supplied to Many UK Authorities
More Information
Barcode 5055853177404
Brand QUADMAXX
