| Classification | Heavy duty ATV |
| Engine | 518cc liquid cooled, longitudinally mounted single-cylinder four-stroke |
| Carburation | PGM-FI 36mm |
| Ignition | Full-transistorized with electronic advance |
| Starter | Electric |
| Transmission | Manual foot-shift; 5 speed and reverse |
| Drive | Direct front and rear driveshafts with TraxLok™ and locking front differential. |
| Front Suspension | Independent double-wishbone; 185mm travel |
| Rear Suspension | Swingarm with single shock; 185mm travel |
| Power Steering | Yes |
| Front Brakes | 190mm dual hydraulic discs |
| Rear Brake | 160mm sealed mechanical drum |
| Front tyres | 25 x 8-12 |
| Rear tyres | 25 x 10-12 |
| Fuel Capacity (l) | 17.7L, incl. 5.9L res. |
| Bore x Stroke (mm) | 96.0 x 71.0 |
| Dimensions - Length (mm) | 2100 |
| Dimensions - Width (mm) | 1200 |
| Dimensions - Height (mm) | 1210 |
| Wheelbase (mm) | 1270 |
| Seat Height (mm) | 870 |
| Ground Clearance (mm) | 190 |
| Towing Capacity (kg) | 384 |
HONDATRX520FM2

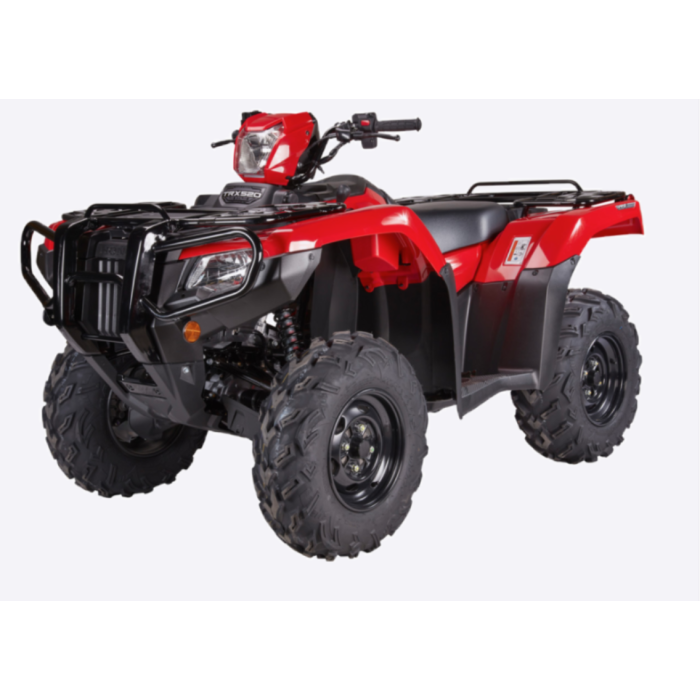

Honda TRX520 Foreman FM2 Power Steering 2/4wd ATV
Out of stock
£11,676.00
£9,730.00
Please Note - Do Not Purchase ATVs Online - We Do Not Accept Payment For Quads Online Or By Card Over The Phone Due To Fraud. Please Ring Sam On 07943 010421 - Thanks!
Honda TRX520 Foreman FM2
The All-round Work Horse
| Brand | HONDA |
|---|
